5.10 Electronic control board SMT placement technology

The electronic control main board adopts SMT patch sealing technology to improve the anti-clutter interference, to ensure that the main board is not affected by wind, sand, high temperature and high humidity, and to make the main control board longer.

5.11 Anti-snow function

In the snowy weather conditions in winter, in order to prevent the snow from adversely affecting the top of the outdoor unit fan,you can turn on anti-snow mode, the fan starts running to clear the snow to ensure the normal operation of the unit.

CONVENIENT INSTALLATION AND MAINTENANCE

The TMV6+ is designed for diverse application scenarios, with its installation environment requirements carefully considered. Its appearance and functional design incorporate user-centric details that significantly enhance installation convenience, accelerate the process, and simplify future maintenance.

14 basic modules, satisfy all kind of requirement

Big-capacity module design, easy installation and space saving

1100

Super long refrigerant pipeline design, flexible structure

Convenient for the transportation, installation and commissioning

130Pa high static pressure for outdoor unit

Auto-addressing function

ODU without oil balance pipe, compact design

Commissioning software

Emergency power-off function for indoor unit maintenance

6.1 Large-capacity Module Design, Convenient Installation And Space Saving

The maximum capacity of a single unit is 34HP.

Reduce the workload of wiring, save labor cost and construction period.

Smaller body size saves installation space.

Less installation materials, saving purchase costs.

TMVS 2 ODUs in parallel

TMV6 ODU

…. Power cord and ground

2… ODU&IDU communication line Refrigerant

3……… gas side

4 . Liquid refrigerant side

5…… Communication line between ODU

6.2 1100m Super Long Piping Design

The industry-leading piping length, with a total length of 1100m, makes floor design more flexible.

O The max distance between the IDU and the ODU (the higher ODU) is 100m. The max distance between the IDU and the ODU (the lower ODU) is 11Om.

The maximum distance between indoor units is 40m.

The maximum actual single pipe length is 220m.

The equivalent length from first indoor distributor to last indoor unit 120m.

The maximum equivalent single tube length is 240m.

6.3 130Pa External Static Pressure \*

Engineered with advanced fan blades and a high-performance inverter motor, the system delivers a superior external static pressure of 130Pa\*. This ensures reliable and efficient heat dissipation.

Better heat dissipation, better refrigeration effect
\*Customizable to 130Pa

6.4 One-button commissioning function

You can choose to debug on the outdoor unit side or remotely through the monitoring software to realize the cooling and heating trial operation, no need opening the indoor units one by one, which is convenient for on-site debugging and improves the quality of construction at the project site.

PCB of ODU

One button commissioning via commissioning software.

One button commissioning from outdoor unit.

6.5 Non-polarity communication connection

CAN bus communication mode is applied between indoor and outdoor unit, no need to distinguish between positive and negative poles, and the installation is simpler and more efficient

6.6 No Oil balance Pipe For ODU

The outdoor units without oil equalizing pipe, which are more convenient for installation and also reduces the error of pipeline leakage.

Liquid refrigerant tube Refrigerant trachea Equalizing tubing

6.7 360°pipe Connection Design

These units allow the freedom to connect the piping in multiple directions, such as front side, left side, right side and back side, making installation easier.

6.8 Emergency Power-off Function For IDU Maintenance

If an indoor unit requires power outage for maintenance due to a malfunction, it can be independently powered off for repair without affecting the operation of the entire system. Other indoor units within the system can continue to operate normally.

6.9 Commissioning Software

O Commissioning software supports local analysis for convenient debugging and easy troubleshooting.

6.10 Auto-addressing Function

The system can realize the automatic allocation of indoor unit address. There is no need to dial code during commissioning, which avoids the trouble of manual setting one by one. It is more intelligent and convenient.

6.11 Compact design and convenient transport

The outdoor unit module has only 4 basic structures with the same height, which simplifies the design process and improves the flexibility of the system.

32 to 34 HP<br>8 to 12 HP

14 to 22 HP

ODU Specifications (8-34HP)

Mini VRF

Full DC Inverter Tropical Unit

7.1 Strong Power, Stable Operation

High efficiency full DC inverter and twin rotary compressor

TCL Mini VRF use full DC inverter twin rotary compressor, which has highefficiency both for full load condition and partial load condition, also leads to low noise, stable and reliable operation.

High efficiency DC fan motor

0 The stepless regulation of the fan motor can meet the actual requirement of the capacity output, efficiency of motor is increased up to be 45%, higher efficiency in low speed operation.

Electrical control box refrigerant cooling technology

The refrigerant cooling technology can cool the PCBs in high ambient temperature condition, which improves the reliability, effciency and lifespan of the MINI VRF units.

Wide operation temperation range

The Mini VRF can operate under - 2 5 ^ { \circ } \mathsf { C } to ensure the heating demand, operate up to 5 4 ^ { \circ } \mathsf { C } to make sure the cooling capcity output with high efficiency and stability

7.2 Energy Saving And Environmental Friendly

High energy efficiency

O TheTCL mini VRF adopts full DC inverter compressor, DC fan motor, high-precision electronic expansion valve to create a durable system.

R41OA High-efficiency and environmentally friendly refrigerant

R41OA is an HFC refrigerant which does not damage the ozone layer. It is an energy efficient and environmentally friendly refrigerant.

R41OA is non-toxic and is a "non-flammable refrigerant". The composition structure of R410A is not easy to change and very stable.

RoHS Certification

O The TCL mini VRF unit meets the RoHS enviromental certification, which is environmental friendly.

7.4Beautiful Appearance, Upgraded Structure Design

Simple and elegant appearance

The top panel-

No screw design to get high-quality structure and improve the strength, more beautiful

The front panel

Double 528mm wind wheel, larger air volume and lower noise.

Grille

Grille adopts DOE simulation design, air volume increased more than 7%

Footing

High strength foundation with rust - proof, corrosion - proof, more stable and reliable.

Right front side plate

Mold forming and integrated design to make sure the strength of the panel

Lifting handle

Upgraded handle design, easy to carry

Right back plate

The mold is integrally formed and the new designed diffuser improves the heat exchange efficiency.

Seal plate

Ensure simple pipe connection.

Three side direction pipe connection

0 The front, side and back of the unit are designed with knock-out holes, coper pipes can be connected from various directions, which is more convenient to do the installation.

Sealing plate is combined with knock-out plate Three side pipe connection design Different installation options

7.5 Mini VRF Parameters

10-16 KW

18-22.4 KW

IDU lineup

Series

Fan motor

Model

Capacity range(x10Ow)

18

22

25

28

32

36

40

45

50

56

63

71

80

90

100

112

125

140

160

180

220

280

450

560

360°Q8cassette

DC

TMV-V(**)Q8/N1DY(E)

●

C

●

●

●

●

●

●

●

O

O

●

●

●

compactcassette

DC

TMV-V(**) Q4R/NIDIY (E)

●

●

●

●

●

C

C

O

●

●

Low ESPSlim duct

DC

TMV-V(**)F5/N1DY(E)

●

●

●

●

●

●

●

●

●

●

C

●

●

Free staticpressure duct

DC

TMV-V(**) F2/N1DY(E)

C

O

C

C

Wall-mounted(External EXV)

DC

TMV-V(**)G/N1DY-B(E)

●

●

O

●

●

●

●

●

●

Wall-mounted(Built-in EXV)

AC

TMV-V(**)G/N1Y-B(E)

●

●

C

O

●

●

O

●

High staticpressure duct

AC

TMV-V(**)F1/N1Y(E)

Fresh airduct

AC

TMV-V(**) F1/XFN1Y(E)

●

●

●

●

Celilling& Floor

AC

TMV-V(**) ZD/N1Y(E)

O

O

●

C

●

●

One-waycassette

DC

TMV-V(**) Q1/N1DY(E)

●

●

●

●

●

●

●

Two-waycassette

AC

TMV-V(**)Q2/N1Y(E)

●

●

●

C

O

C

0

360° Q8 Cassette

Recommended places

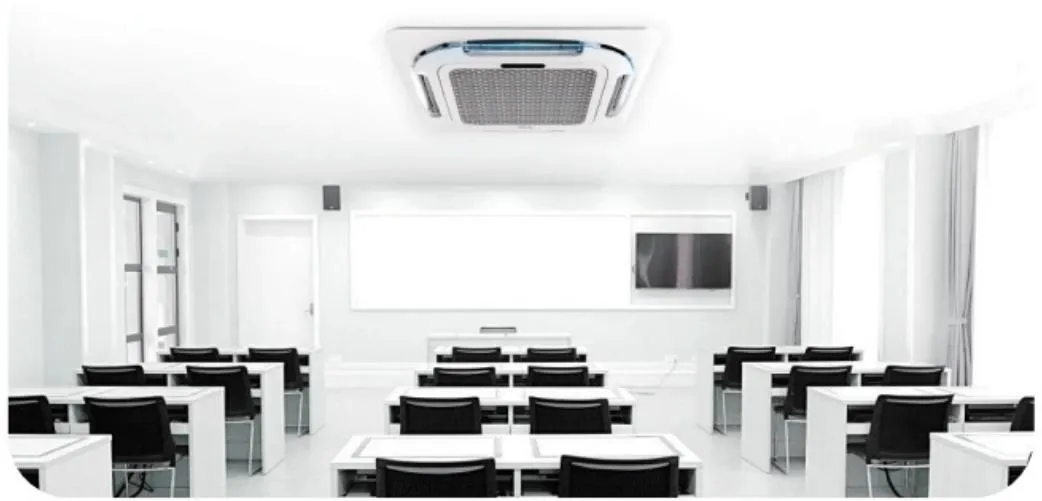

Office, restaurant, supermarket, shopping mall, lobby, etc

Technical characteristics

Soft Wind Panel

The optional Soft Wind Panel creates a 360° airflow for superior comfort. Air is dispersed through 2,565 micro-holes, which break up the direct airflow into a gentle, body-friendly breeze.

360°Airflow

Experience a gentle breeze in every corner. Our system ensures uniform air distribution to eliminate hot and cold spots, maintaining a consistently comfortable temperature throughout your space.

Large Air Outlet Volume

Through the new DC inverter fan motor, achieve 2100m³/h air outlet volume, and improve the air Exchange efficiency by 30%

Standard health filter screen, effectively remove large particles in the air, optional silver ion purification module, adsorption of formaldehyde and odor, eliminate germs.

Clean Sterilization, Healthy Life

Built-in DC Drain Pump

The drain pump delivers a maximum lift height of 1200 mm, simplifying installation and enabling efficient condensate drainage from the indoor unit.

Adoption DC inverter motor technology, to improve the running efficiency by 15% and reduce the operation noise (min 27dB)

Ultra Low Noise

Using the advanced technology of threedimensional spiral blade design, can reduce the air resistance, realize the machine low noise operation, "quiet" enjoy a comfortable life.

DC Inverter Fan Motor Technology

Standard Float Switch, Timely Warning

Standard float switch, when the condensate pump is faulty or the drainpipe is blocked, timely warning, prevent the water tray inside the machine overflow.

Compact Cassette

Technical characteristics

Ultra Low Noise

Using the advanced technology of three-dimensional spiral blade design, can reduce the air resistance, realize the machine low noise operation, "quiet" enjoy a comfortable life.

Built-in DC Drain Pump

The drain pump delivers a maximum lift height of 1200 mm, simplifying installation and enabling efficient condensate drainage from the indoor unit.

Recommended places

Office, restaurant, supermarket, shopping mall, lobby, etc

DC inverter fan motor technology

Adoption DC inverter motor technology, to improve the running efficiency by 15% and reduce the operation noise (min 25dB)

Compact design

It features a compact body size (570mm x 570mm) that allows it to fit neatly within the space of standard architectural ceiling tiles.

Specification

Low ESP Slim Duct

Technical characteristics

Constant Air Volume

Fan motor automatically adjusts speed according to real-time wind resistance. To provide stable air volume to rooms.

Ultra-thin Body Design, Fashion and Beautiful The minimum height of the body is only 200mm, saving space.

ESP up to 8OPa supports longer air duct and fits with more installation scenario.

Segmented Slide-out Filter Design (Optional)

The filter can be pulled out from either left or right side for replacement or cleaning, even in confined spaces.

Recommended places

Office, conference room, hotel room, restaurant, living room, etc

High ESP

Built-in DC Drain Pump

The drain pump delivers a maximum lift height of 1200 mm, simplifying installation and enabling efficient condensate drainage from the indoor unit.

Free Static Pressure Duct

Recommended places
Office, conference room, hotel room, restaurant, living room, etc

Technical characteristics

Constant Air Volume

Fan motor automatically adjusts speed according to real-time wind resistance. To provide stable air volume to rooms.

Ceiling & Floor installation

Support both ceiling concealed and floor concealed installation.

Built-in DC Drain Pump

The drain pump delivers a maximum lift height of 1200 mm, simplifying installation and enabling efficient condensate drainage from the indoor unit.

Slim Body 245mm

Duct are new designed body of 245mm thickness which is convenient for concealed installation.

Fresh Air

Take in outdoor fresh air, ensure that the indoor air is fresh and circulated. Max fresh air volume 100m²/h.

Segmented Slide-out Filter Design (Optional)

The filter can be pulled out from either left or right side for replacement or cleaning, even in confined spaces.

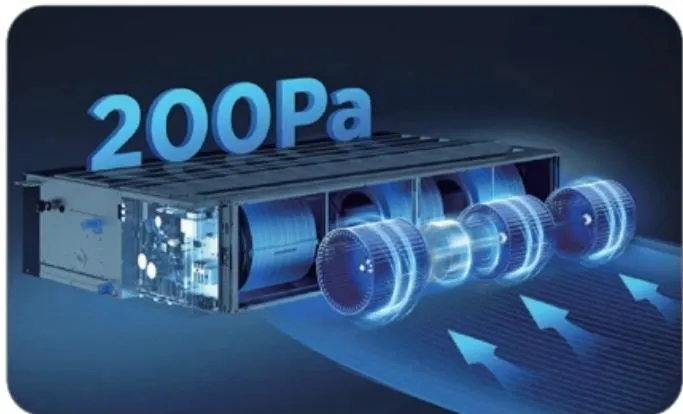

ESP up to 200Pa\* supports longer air duct and fits with more installation scenario.
Customizable magnetic filter, no screws required for mounting, enabling easy removal and cleaning.

2 Air Return Ways

There are two air return ways to be chosen for installation: bottom air return and rear air return.

High ESP

Magnetic Filter (Optional)

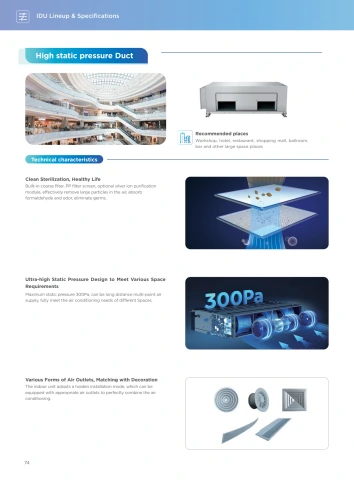

High static pressure Duct

Technical characteristics

Clean Sterilization, Healthy Life

Built-in coarse filter, PP filter screen, optional silver ion purification module, effectively remove large particles in the air, absorb formaldehyde and odor, eliminate germs.

Ultra-high Static Pressure Design to Meet Various Space Requirements

Maximum static pressure 30oPa, can be long distance multi-point air supply, fully meet the air conditioning needs of different Spaces.

Various Forms of Air Outlets, Matching with Decoration

The indoor unit adopts a hoiden installation mode, which can be equipped with appropriate air outlets to perfectly combine the air conditioning.

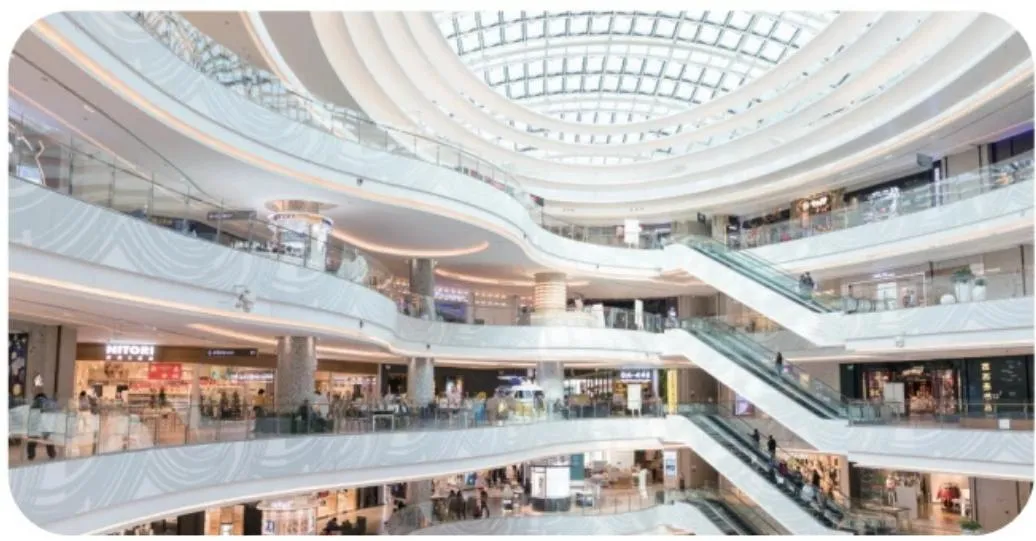

Recommended places Workshop, hotel, restaurant, shopping mall, ballroom, bar and other large space places

High Static Pressure Duct

Specification

Fresh Air Duct

Technical characteristics

Healthy Fresh Air

Through the fresh air unit, the outdoor healthy air can be introduced into the room to keep the indoor healthy.

Ultra-high Static Pressure Design

The maximum static pressure is 300pa, which can meet longdistance air supply and different space requirements.

Recommended places

Cinemas, hotels, lobbies, dance halls, bars and other places

Simplify Air Exhaust System

Simplified air supply and exhaust system, stable and reliable.

Control Smart and Lower Cost

The fresh air unit can be controlled independently or connected to the same outdoor unit system with the AC indoor unit, reducing costs and installation space.

Note: The sum of the capacity of the processing unit and the indoors should be 50%-100% of the ODU capacity, and the capacity of the fresh air units does not exceed 30%.

Wall mounted

Technical characteristics

Ultra-low Silent Operation

Adopt large-diameter blade, high-quality plastic-encapsulated motor, and the noise is as low as 27dB(A).

Long-lasting Filter Design

The long-term filter design makes the air more heathy, reduces the difficulty of maintenance.

The upper and lower wind guide vanes make the airflow comfortable.

Recommended places

Living room, study, reference room, negotiation room and other places

Ultra-thin Body Design, Smart and Beautiful

The minimum thickness of the unit is only 294mm, which makes installation more convenient.

Wide-angle Air Supply, More Comfortable

Wall mounted (Built-in EXV)

Specification (50Hz, AC)

Wall mounted (External EXV)

If the wall-mounted unit is installed in the bedroom and you are sensitive to sounds (such as the noise from the EXV adjustment), it is recommended to use a external EXV kit wallmounted unit, and install the EXV kit outside the bedroom, like in the corridor or inside the ceiling.

External EXV Kit

Note: Maximum 9m if extending the EXV wire in field.

Specification (50/60Hz, DC)

Ceiling & floor

Technical characteristics

Ultra-thin Design

Compact design which fits for various room styles.

Wide Range of Air Flow

The air supply angle is from 0 to 110°, making the indoor temperature more uniform and more comfortable.

Dual Direction of Drainage

Condensing water can be drained both from left and right side.

Wire control is available, especially for hotel rooms, offices, etc.

Recommended places

Living room, study, reference room, negotiation room and other places

Detachable Plastic Blowers

Universal designed parts and assemblies applied, which is easy for maintenance.

Flexible Installation

Two ways of installation available, ceiling suspended and floor standing.

Wire Control (Optional)

One-way Cassette

Recommended places

Living room, dining room, office, lobby, etc

Technical characteristics

High-lift Drain Pump

The drain pump with a 1200mm lifting head which is as standard, simplifying installation of the drain pipes.

Stronger Airflow

1100m3/h large-circulation air volume ensuresrapid whole-room cooling by circulating andspreading cool air evenly.

T-AI Energy-Saving

Using Al algorithm and tempature prediction models, T-Al dynamically adjusts the compressor frequency to regulate room temperature-saving energy while keeping comfort.

Easy Disassembly & Easy Cleaning

A simple pull-down releases the snap-fit panel for easy maintenance and cleaning.

Wi-Fi & OTA

Easily control your air conditioner anytime, anywhere with just a mobile phone and update software APP. No need to manipulate on electrical controlboard, convenient for afterservice.

10.5m Long-distance

AirflowSuitable for narrow and high-depthspaces.

120° Wide Airflow

Full-Room Airflow adapts to diverseroom shapes,delivering coolingcomfort that reaches every corner.

130mm Slim Design

Fits ceiling space as limited as 150 mm, Saves wall-mount space, Blends in with integrated home-style design.

Two-way Cassette

Technical characteristics

High-lift Drain Pump

A drain pump with a 70Omm raise height is fitted as standard, simplifying installation of the drain piping.

Standard Float Switch, Water Level Monitor

Equipped with float switch, which will automatically send alarm when malfunction of drain pump or stuck of drain pipe occur.

Recommended places

Sitting room, study, dining room, small meeting room, etc

Ultra-thin Body, Lightweight Design

Ultra-thin body (29Omm), requires less installation space, even in the narrow low ceiling, still can be easily installed, more flexible collocation decoration style.

Super Wide Angle Air Supply

Panel swing motor system adopts high-precision stepper motor, panel up and down risk control system is more intelligent, to achieve ultrawide Angle and large range of air supply.

Three-speed Adjustment

New winding motor, with scroll fan technology, wider air volume regulation, quieter operation, unique intimate wind gear design. High, medium and low three speed adjustment, strong refrigeration and heating, to create a quiet and comfortable temperature.

Quiet Design, Quiet and Comfortable

Centrifugal wind wheel, axial air inlet, through rotation to form a certain wind pressure, small blade area, large number, uniform air, noise greatly reduced, for you to create a quiet and comfortable environment.

High Ceiling Design, Direct Air Flow to the Ground

High ceiling design, suitable for ceiling height up to 3m space.

Specification

INTELLIGENT - OPERATION ANDMAINTENANCE CONTROL

TCL's full DC inverter VRF systems are equipped with intelligent operation and maintenance capabilities. This integrated solution ensures energyefficient operation, high performance, and intelligent management for buildings.

Non-polar CAN bus communication technology

VRF WiFi & APP control solution

Multiple control solutions

AHU

AHU connection kit

BMS gateways

4.3 Multiple control solutions

TMV6+ provides a variety control solutions for customers to choose .

Remote Controller

· Cooling / dehumidification / fan / heating /

automatic and other operation settings

. Temperature / fan speed setting

. Sleep/timer/swing/turbo and other functions

Wired Controller

· Cooling / dehumidification / fan / heating / automatic and other operation settings

. Temperature / fan speed setting

. Sleep / timer /swing / turbo and other function settings

· Monitoring function, big LCD screen displays the operation status of the unit

· Remote control signal available

Central Controller

· 10 inches and colorful screen display, beautiful appearance, touch screem, easy operation.

· A variety of combinations, single or multiple machines can be operated simultaneously.

· It also has the schedule setting and historical fault query function.Up to 32 refrigerant systems and 1024 IDUs can be connected, easy to set indoor units parameters

4.4 VRF WiFi & APP control solution

Connect the WiFi module with the air-conditioning system, and then match the WiFi module with the wireless router through the mobile phone APP, and the air-conditioning equipment is networked, so that the cell phone APP can realize remote control of the air-conditioning system from a different place and enjoy the convenience interconnection;

WiFi module

Intelligent APP

After the unit is networked, the air conditioning system can be controlled through the Tsmart mobile APP, which can realize:

-Mode control of air conditioner cooling/heating/dehumidifying/air supply;
-Setting temperature, wind speed, timer on/off function settings;

-Single unit, group, cluster, all control;

52E

58E

85T

86J1

86N3

86V 86B1
10" Central Controller

KZH- D1

4.5 AHU Connection KIT

O Solution to extend TCL VRF technology to third party Air Handling Units.

√ Easy for connecting to third party AHU

√ Setting capacity by DIP

√ Remoter or wire controller can be chosen

√ 3 steps fan motor speed, Low/Mid/High

√ Error status: No error or error occurred

Communication wire Refrigerant pipe

Location of refrigerant pipes

Installation space for ODU

O The space shown in the figure needs to be reserved for the installation of the ODU, and the power supply equipment should be installed separately.

To ensure the heat dissipation of the outdoor unit, there should be no obstacles above the outdoor unit. If it cannot be avoided, a deflector should be installed.

AMore than 45°

© More than 1000mm

B More than 300mm

D Guide plate

Arrangement sequence of ODU

When a system has more than two outdoor units, it is necessary to install the units as the followings:

The outdoor units are arranged in descending order(for example, in the right picture, ODU capacity A ≥ ODU capacity B ≥ ODU capacity C) and the ODU A should install at the brance pipe.

Requirements for ODU installation

A shock absorber or shock pad should be installed between the unit and the foundation.

The unit and the foundation should be released tightly, otherwise there will be a lot of noise and vibration.

The outdoor unit must be grounded reliably.

It is forbidden to open the valves of the liquid pipe, gas pipe and oil balance pipe of the unit before commission.

The installation should ensure that there is enough space for maintenance.

Piping classification

Allowable length and height difference of refrigerant piping

Pipe dimension of indoor unit(NO.: a,b,c,d,... m)

IDU main piping and branch pipe assembly(Number: L2,L3,L4..L12,A,B,C...L)

Branch pipe specifications

${ \mathsf { G O 1 } } : ( \Phi 2 5 . 4 - \Phi 1 9 . 1 ) { \bmod { } } 2 \times ( \Phi 2 2 . 2 - \Phi 6 . 4 )$ G02：(φ31.8-φ25.4) _ (φ28.6−φ19.1)+(φ28.6−φ9.5) G03：（φ31.8-Φ38.1) (φ34.9-φ25.4)+(φ38.1-φ9.5) G04：(φ41.3-φ44.5) $( \Phi 4 4 . 5 - \Phi 3 4 . 9 ) + ( \Phi 4 1 . 3 - \Phi 9 . 5 )$

Diameter of outer connecting pipe

ODU stop valve port diameter(Number: g1,g2,g3,g4)

ODU Main pipe and branch pipes

Electrical system and installation

Electrical wiring precautions

Please design the dedicated power supply for IDU and ODU separately.

The power supply should be equipped with a leakage protector and a manual switch.

The power supply, leakage protector and manual switch of the IDU connected to the same ODU are required to be universal. (Please use the same circuit for the IDU power supply of the same system. And it must be turned on and off at the same time, otherwise it will seriously affect the service life of the system, and unpredictable situations may occur.)

O Please integrate the IDU and ODU connection wiring system and refrigerant piping system into the same system.

In order to reduce interference, it is recommended to use two-core shielded cables for the signal cables of the IDU and ODU. Please do not use multi-core cables without shielding.

During installation, the communication line and the power line must not be intertwined, and must be routed separately, and the minimum distance should be greater than 2oCM, otherwise the communication of the unit may be abnormal.

Power wiring must be entrusted to professional electricians.

ODU power wiring

1.The wire diameter and continuous length in the table are applicable to a maximum distance of 20 meters. If the power wiring exceeds 20 meters and the voltage drop exceeds the range of 2%, please choose a wire diameter with a larger cross-sectional area.

2.The selection of the power cord is based on the ambient temperature of 40°C.

3.The wire current carrying capacity in the attached table is only for the user's reference. The actual interception capacity of the wire varies depending on the type and length of the cable, the way of pipe penetration, and the actual laying environment, and the correction factor is different.

ODU power connection

IDU power wiring

Remarks: The wiring diameter and continuous length in the table indicate that the voltage drop is within 2%. When the continuous wiring length exceeds the value in the table, please follow the relevant regulations to select the wire diameter.

Remarks:

1. Please use the refrigerant piping system, the indoor unit-indoor unit room, and the indoor unit-outdoor unit connection signal line as the same system.

2. All the internal units in the same system must be powered in a unified manner, and some internal units cannot be cut off, otherwise the unit will fail.

3. When the power cable and the signal cable are parallel, please put the wires into their respective wire ducts, and leave a suitable distance between the wires. (Distance between power cables: 300mm below 10A, 500mm below 50A)

4. When multiple outdoor units are connected in parallel, the main outdoor unit must be set. (Refer to the settings of the DIP switch)

Control system and installation

Signal lines must be shielded. Using other wires may cause signal interference and cause malfunction.

The shielding nets of all shielded wires are connected to each other and finally connected to the sheet metal ground at one point.

It is forbidden to bundle signal wires, refrigerant pipes, power wires, etc. together. When the power line and the signal line are laid in parallel, they should be kept at a distance of more than 3oOmm to prevent the signal source from being disturbed.

Signal lines cannot form a closed loop.

The signal line has no polarity, and there is no need to distinguish it when wiring.

IDU and ODU signal line wiring

Please use two-core shielded wire (≥O.75mm²) for the signal cable of indoor and outdoor units, without polarity. The signal cable of indoor and outdoor units should be connected as far as possible from the end of the outdoor unit

The last one needs to be shorted with a matching resistor at the RP position on the control board.

"The Growing of the Great Brand" strategy and craftsman spirit To create high-quality professional projects

TCL CAC insists on frequency conversion and energy saving tecnology, cooperates with top enterprises in the industry, independent innovation and technological change. TCL VRF is widely used in public places such as residences, factories, shops, etc. The sample projects are all over the world, creating an energy-saving, comfortable and healthy living environment for users.

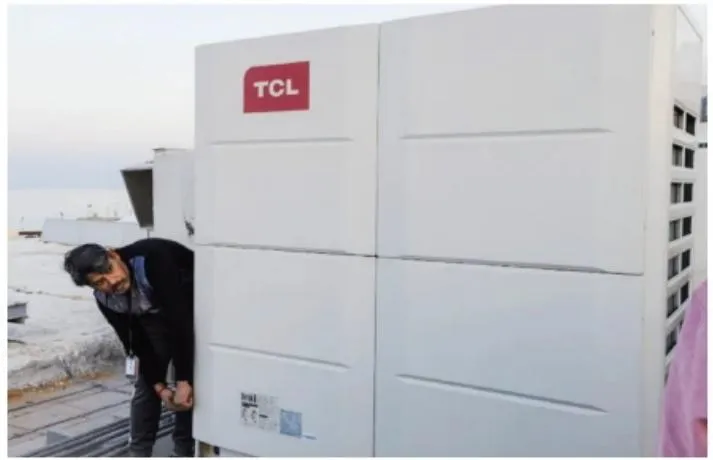

Country name: Pakistan, Project name: NASTP Nur Khan Islamabad, Total capacity: 1889 TR.

Country name: Pakistan, Project name: PAF Hospital, Total capacity: 167O TR.

Country name: Pakistan, Project name: Nastap University, Total capacity: 1152 TR.

Country name: Kuwait, Project name: Trolley Supremarket

Country name: Kuwait, Project name: High-End Club SVN

Country name: Iraq, Project name: Dr. Atyaf Private Hospital

Countryname: Kuwait Project name: Four High-End Villas

Country name: Kuwait Project name: High-End RH Villa

Country name: UAE Project name: Ajmnan speclaly General Hospital

Country name: Iraq Project name: Clinic Dental Center

Country name: Oman Project name: Rozna Restaurant

Country name: Kuwait Project name: Kuwait College of Science and Technology (KCST)

TCL- CAC

V26.09.18
